深入解析：柱状图（Vue3）

二种基础柱状图

效果图：

import { ref, computed } from "vue";
import VChart from "vue-echarts";
import { use } from "echarts/core";
import { DatasetComponent } from "echarts/components";
import { CanvasRenderer } from "echarts/renderers";
import { BarChart } from "echarts/charts";
import {
GridComponent,
TooltipComponent,
LegendComponent,
} from "echarts/components";
use([
DatasetComponent,
CanvasRenderer,
BarChart,
GridComponent,
TooltipComponent,
LegendComponent,
]);
// 原始数据
const dataJson = ref([
{ value: 5, label: "小于1岁" },
{ value: 12, label: "1 ～ 9 岁" },
{ value: 10, label: "10 ～ 19 岁" },
{ value: 7, label: "20 ～ 29 岁" },
{ value: 32, label: "30 ～ 39 岁" },
{ value: 40, label: "40 ～ 49 岁" },
]);
// 提取y轴标签数据
const yAxisData = computed(() => dataJson.value.map(item => item.label));
// 提取系列数据（仅数值）
const seriesData = computed(() => dataJson.value.map(item => item.value));
// 图表配置选项
const option = computed(() => ({
grid: {
left: 10,
right: 20,
bottom: 0,
top: 10,
containLabel: true,
},
tooltip: {
trigger: "axis",
axisPointer: {
type: "shadow",
},
},
legend: {},
xAxis: {
type: "value",
axisLine: {
show: true,
lineStyle: {
color: "#6A7F98FF",
},
},
splitLine: {
show: true,
lineStyle: {
color: ["#6A7F98FF"],
type: "dashed",
},
},
boundaryGap: [0, 0.01],
},
yAxis: {
type: "category",
splitLine: {
show: false,
},
axisTick: {
show: false,
lineStyle: {
color: "#6A7F98FF",
},
},
axisLine: {
show: true,
lineStyle: {
color: "#6A7F98FF",
},
},
data: yAxisData.value,
},
series: [
{
name: "",
type: "bar",
itemStyle: {
borderRadius: 0,
color: "#029CD4",
},
barWidth: 20,
label: {
show: false,
fontSize: 12,
color: "#fff",
position: "top",
},
data: seriesData.value,
},
],
}));
// 获取图表实例
const vChartRef = ref();

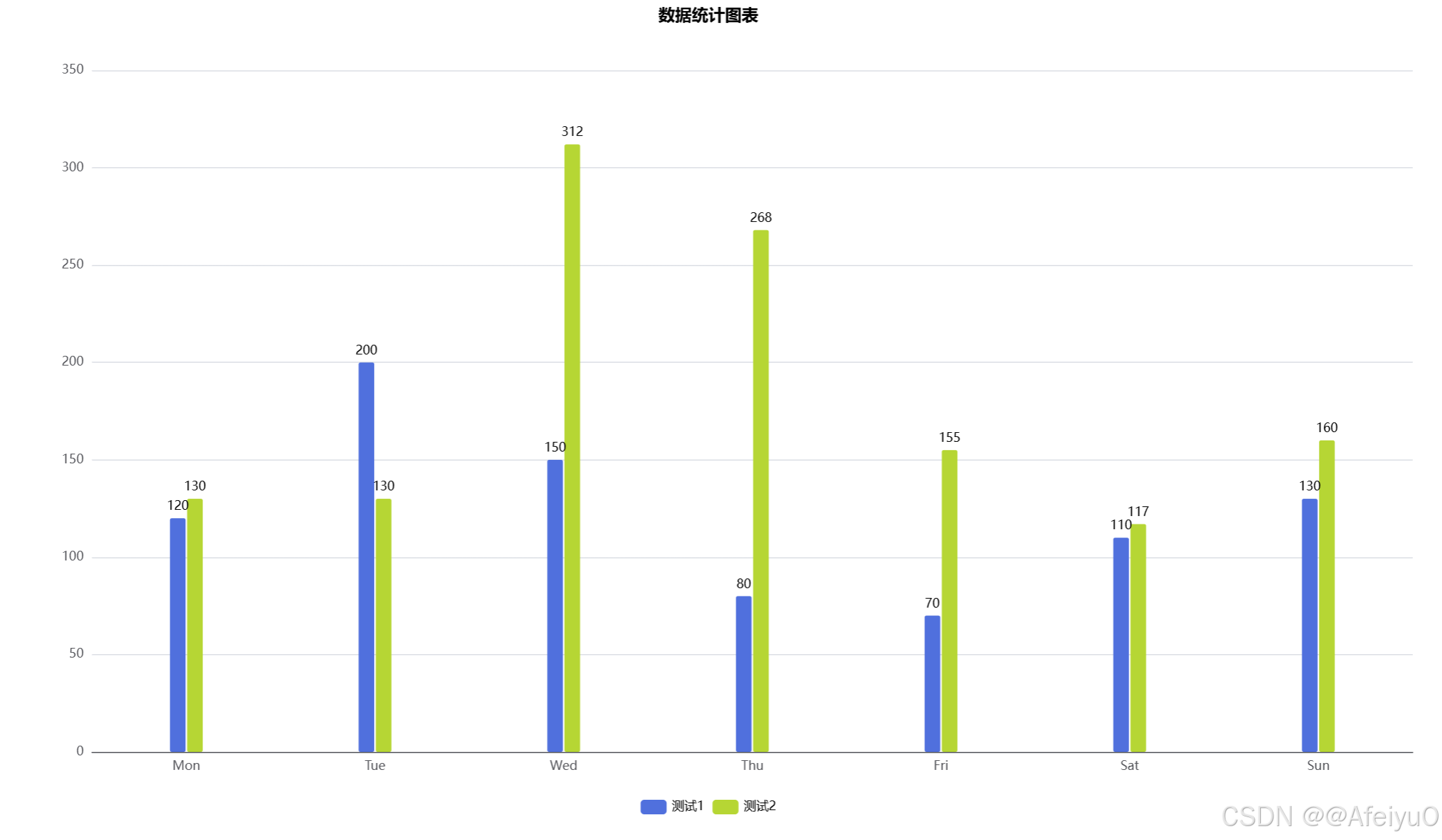

效果图2：

import { ref, reactive, onMounted } from "vue";
import VChart from "vue-echarts";
import { use } from "echarts/core";
import { CanvasRenderer } from "echarts/renderers";
import { BarChart } from "echarts/charts";
import {
DatasetComponent,
GridComponent,
TooltipComponent,
LegendComponent,
TitleComponent,
} from "echarts/components";
use([
DatasetComponent,
CanvasRenderer,
BarChart,
GridComponent,
TooltipComponent,
LegendComponent,
TitleComponent,
]);
// 模拟接口数据数组
const chartData = ref([
{ x: "Mon", y: 120, s: "测试1" },
{ x: "Tue", y: 200, s: "测试1" },
{ x: "Wed", y: 150, s: "测试1" },
{ x: "Thu", y: 80, s: "测试1" },
{ x: "Fri", y: 70, s: "测试1" },
{ x: "Sat", y: 110, s: "测试1" },
{ x: "Sun", y: 130, s: "测试1" },
{ x: "Mon", y: 130, s: "测试2" },
{ x: "Tue", y: 130, s: "测试2" },
{ x: "Wed", y: 312, s: "测试2" },
{ x: "Thu", y: 268, s: "测试2" },
{ x: "Fri", y: 155, s: "测试2" },
{ x: "Sat", y: 117, s: "测试2" },
{ x: "Sun", y: 160, s: "测试2" },
]);
// 获取图表实例
const vChartRef = ref();
// 获取series
const seriesItem = ref({
type: "bar",
barWidth: 15,
name: "",
label: {
show: true,
position: "top",
color: "#000",
fontSize: 12,
},
itemStyle: {
borderRadius: 2,
color: null,
},
data: [],
});
const getSeries = () => {
const seriesNames = [...new Set(chartData.value.map((item) => item.s))];
const xValues = [...new Set(chartData.value.map((item) => item.x))];
const series = seriesNames.map((name) => {
const seriesItemCopy = JSON.parse(JSON.stringify(seriesItem.value));
seriesItemCopy.name = name;
const seriesData = new Array(xValues.length).fill(null);
chartData.value.forEach((item) => {
if (item.s === name) {
const index = xValues.indexOf(item.x);
if (index !== -1) {
seriesData[index] = item.y;
}
}
});
seriesItemCopy.data = seriesData;
return seriesItemCopy;
});
return { series, xValues };
};
const option = reactive({
tooltip: {
trigger: "axis",
backgroundColor: "transparent",
borderWidth: 0,
padding: 0,
},
title: {
show: true,
text: "数据统计图表",
subtext: "",
left: "center",
top: "0",
right: "0",
bottom: "0",
textStyle: {
color: "#000",
fontSize: 16,
},
subtextStyle: {
color: "#eee",
fontSize: 14,
},
},
legend: {
show: true,
textStyle: {
color: "#000",
},
},
xAxis: [
{
type: "category",
data: [],
},
],
yAxis: [
{
type: "value",
},
],
series: [],
});
console.log('option',option)
onMounted(() => {
const { series, xValues } = getSeries();
option.series = series;
option.xAxis[0].data = xValues;
});
